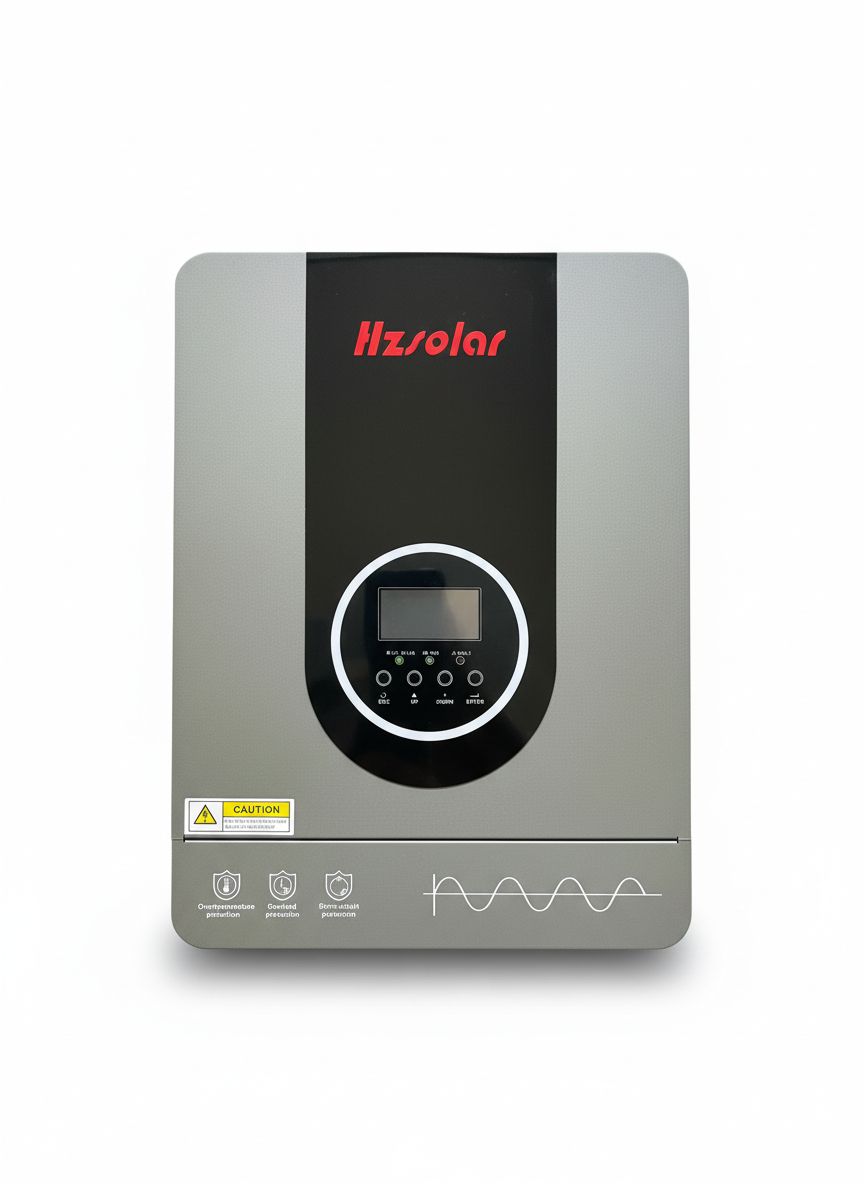

3.2kVA Hz Solar Hybrid Inverter 24V

The Hz Solar S-2832 is a versatile off-grid hybrid inverter designed to provide reliable, high-efficiency power management for residential and small office applications. This pure sine wave system ensures your sensitive electronics remain protected while seamlessly switching between solar, battery, and utility power. * Pure Sine Wave Output: Delivers clean and stable electricity, ensuring the safety and longevity of your household appliances and sensitive electronics. * Advanced MPPT Technology: Integrated 80A MPPT solar charge controller allows for efficient energy harvesting with a high PV input of up to 450Vdc. * Dual Charging Priority: Easily configure your AC or Solar charger priority via the user-friendly LCD interface to suit your specific energy needs. * Battery Versatility: Fully compatible with Lithium-ion (via BMS) and Lead-Acid (Gel/Sealed) battery banks, offering flexibility for your energy storage setup. * Battery-Free Operation: Capable of powering loads directly from solar panels under specific conditions, providing an adaptable energy solution. * Comprehensive Protection: Built-in safeguards against overloads, over-temperature, and short circuits for enhanced operational safety.

* Model Number: S-2832

* Rated Power: 3200VA / 3000W

* System Voltage: 24VDC

* Output Waveform: Pure Sine Wave

* Output Voltage: 230VAC ± 5%

* Frequency: 50Hz / 60Hz (Auto-sensing)

* Surge Power: 6000VA * Maximum PV Input (Voc): 450VDC

* MPPT Voltage Range: 55VDC - 450VDC

* Maximum Solar Charge Current: 80A

* Maximum AC Charge Current: 60A

* Transfer Time: 10ms - 20ms * Peak Efficiency: 90% - 93%

* Ingress Protection: IP21 * Communication Ports: USB / RS232

* Dimensions: 440mm x 300mm x 100mm

* Weight: Approx. 9kg - 10kg

1 x 3.2kVA Hz Solar Inverter 24V

1 x User Manual
