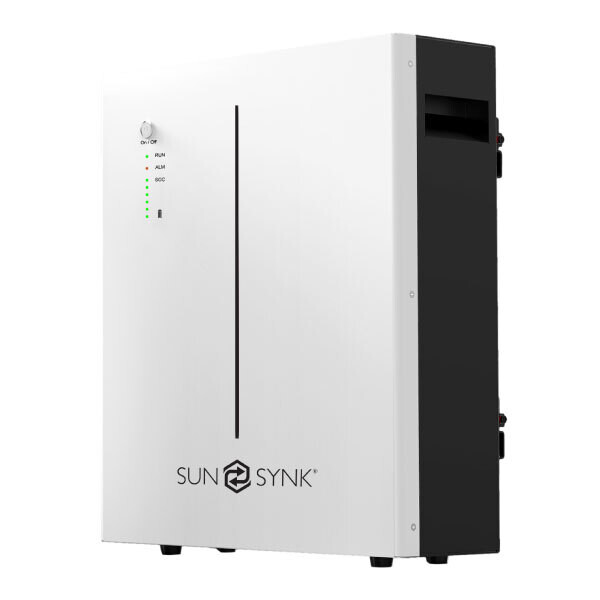

SUNSYNK 5.3kW 100Ah LiFePo4 Lithium Ion Battery

DESCRIPTION

• SUNSYNK 5kW 100Ah LiFePo4 Lithium Ion Battery
• Display: SOC Status & LED Indicator
• Scalability: Max 8 Batteries in Parallel
• Nominal Voltage: 51.2V
• Nominal Capacity: 104Ah
• Battery Energy: 5320Wh
• Charge Voltage: 55.68-56.16Vdc
• Discharge Voltage: 45.6-56.15Vdc
• Nominal Charge & Discharge Current: 50A
• Maximum Charge & Discharge Current: 100A
• Nominal Charge & Discharge Power: 2500W
• Maximum Charge & Discharge Power: 5000W
• Short Circuit Current: 350A
• IP20
• IP Rating: ≤2000m
• Storage Temperature: ≤25°C (12 months); ≤35°C (6 months); ≤45°C (3 months)
• Cycle Life: 6000 Cycles @ 80% DOD/25°C/0.5C, 60% EOL
• Communication: CAN/RS485/RS232
• Installation Type: Floor Stand or Wall Mounted.
• Weight: 46.5Kg
• Dimensions (W x D x H): 450 x 520 x 185 mm
• Does Not Include Power Cables & Communication Cables (Sold Separately)
• Refer To Brochure For Detailed Product Specifications.
• Product might vary from depicted images.
• Graphics are for illustrative purposes only.
• 5 Year Limited Product Warranty.
